Localization with fdia_graph.localization

Which buses are under attack, per scan.

import fdia_graph as fg
from fdia_graph.localization import SwingThreshold, DeltaThreshold, ResidualLocalizer, BusCNN, BusMLP

train = fg.load("ieee14", split="train")
test = fg.load("ieee14", split="test")

loc = SwingThreshold(fa_target=0.01).fit(train)  # thresholds set on benign records only
flag = loc.localize(test)  # [n, N] bool: which buses are called attacked
rep = loc.score(test)  # per-family metrics + benign false alarms

shared	metrics and the benign-quantile calibration in LocalizerBase; a threshold arm changes only the per-bus score, a learned arm also overrides fit to train on every record and, given val, the threshold
budget	every method is calibrated to the same false-alarm target (fa_target), set per bus on benign training records, and the measured test FR differs by method; the one exception is a learned arm given val, which picks one global validation-best threshold from labelled records (the papers' zero-shot protocol)
"all" entry	pools every record; the papers' per-bus macro F1, DR and FR over the buses attacked somewhere in the scored split

The methods

Class	Score	Needs
SwingThreshold	The dataset's windowed swing feature: each scan's injection change as a z-score of the bus's typical recent change	numpy only
DeltaThreshold	The raw one-scan change scaled by the bus's benign RMS. Same signal without the windowing, so the gap shows what windowing buys	numpy only
ResidualLocalizer	Largest normalized residual from a state-estimation solve (any fdia_graph.se estimator, default WLS), aggregated to each bus's own meters and incident flows. Textbook bad-data identification	[se] extra
BusMLP	The papers' lightweight arm: one 4x128 MLP applied to every bus's own 14-dim vector (readings, meter mask, partial KCL residual, delta, swing). 52k parameters	[torch] extra
BusCNN	The papers' best localizer: a 1-D convolution across the bus axis over the same 14-dim vector, 4 layers of 128 channels, kernel 3. No graph read. 154k parameters	[torch] extra

The learned arms train on the records they are given, so the protocol is the load call. fit(train, val=val) picks the papers' validation-best threshold instead of the false-alarm one.

Feature sets

BusMLP, BusCNN and the federated arms take features=, the per-bus vector the encoder reads (localization.learned.FEATURE_SETS):

features=	channels	per bus	needs
"meas"	8	the readings and the meter mask	any dataset
"full14" (default)	14	the papers' vector: readings, mask, partial KCL residual, temporal_delta, swing	any dataset
"full14+prev"	16	full14 and the previous frame's swing (prev_swing)	a timeline
"full14+jac"	22	full14 and the 8 Jacobian features	a timeline, [se]
"full14+prev+jac"	24	full14, prev_swing and the 8 Jacobian features	a timeline, [se]
"jac"	8	the Jacobian features alone	a timeline, [se]

The previous frame's swing separates a one-frame attack from the frame after it, which carries the same jump back with the opposite sign. The Jacobian block takes each frame's measurement change against the previous frame's estimate, so both read the previous frame and need a timeline (ds.export serves prev_node_x, prev_edge_x, prev_timestep and prev_swing on request).

Results

protocol	train and val	test	threshold
zero-shot (the paper's)	benign + Aq + Ad	adds As and Ar, never seen in training	learned arms validation-best; swing keeps its benign calibration
common	every family, unfiltered	the full split	benign quantile at fa_target=0.01 for every method

F1, DR and FR are the paper's per-bus macro scores, averaged over the buses attacked somewhere in the test split (F1 and recall over every test record, FR the per-bus alarm rate on benign records); full metrics in the results store, experiments localization.zero_shot and localization.common (results/). Bold marks the papers' headline localizer, not the best cell.

Zero-shot protocol

Method	F1 14	DR 14	FR 14	F1 118	DR 118	FR 118	F1 300	DR 300	FR 300
Per-bus MLP	0.7397	0.6352	0.0058	0.7033	0.6020	0.0013	0.7229	0.6211	0.0003
1D CNN	0.8037	0.7303	0.0010	0.8124	0.7406	0.0002	0.8108	0.7587	0.0000
1D CNN + previous swing	0.8459	0.7533	0.0001	0.9125	0.8522	0.0000	0.8830	0.8225	0.0000
Swing threshold	0.2476	0.1548	0.0116	0.5418	0.6855	0.0100	0.4685	0.8074	0.0099

Data release v0.8.3. The paper reports 0.9634 / 0.9625 / 0.9524 for the CNN and 0.9626 / 0.9570 / 0.9327 for the MLP on v0.4.1 data, and the SDK classes reproduce them on the v0.7.2 record shards. The timeline columns are lower for the same detectors because a timeline's temporal features compare each frame with the frame emitted one minute earlier. A one-frame attack therefore also spikes the benign frame after it (the echo), with the jump reversed. Those echo frames stay in the benign calibration set on purpose: an operator's detector sees them too, so leaving them out would set lower thresholds and let the realized false-alarm rate exceed fa_target. The previous frame's swing (full14+prev) is what tells an echo from an onset, and it recovers most of the gap.

Common protocol

Method	F1 14	DR 14	FR 14	F1 118	DR 118	FR 118	F1 300	DR 300	FR 300
Swing threshold	0.1559	0.0942	0.0116	0.4255	0.5143	0.0100	0.3882	0.5770	0.0099
Delta threshold	0.0812	0.0452	0.0074	0.4128	0.4982	0.0095	0.4052	0.5897	0.0095
Residual (LNR)	0.3756	0.4183	0.0017	0.2308	0.5668	0.0072	0.2189	0.5061	0.0049
Per-bus MLP	0.7650	0.6970	0.0118	0.5962	0.7373	0.0102	0.4550	0.6827	0.0104
1D CNN	0.8342	0.8593	0.0199	0.4962	0.7351	0.0118	0.4100	0.7082	0.0109
1D CNN + Jacobian (C)	0.8350	0.8462	0.0167	0.3595	0.7897	0.0116	0.3784	0.7356	0.0121
1D CNN + previous swing	0.8216	0.8741	0.0248	0.4813	0.7599	0.0123	0.4032	0.7128	0.0114
1D CNN + previous swing + Jacobian	0.8392	0.8843	0.0256	0.3667	0.8026	0.0124	0.3907	0.7413	0.0116

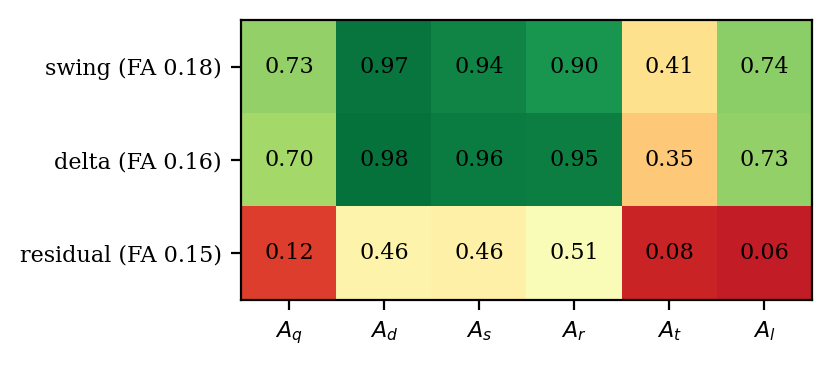

Per-bus F1 by attack family, common protocol. Row labels carry each method's FR.

IEEE 14	IEEE 118	IEEE 300

The pooled score on 118 and 300 is set by the two sustained families: per family (the figures), the CNN reads well on Aq, Ad, As, Ar and Al there and poorly on At and Am, whose episodes are long and so carry many of the scored frames.

Feature ablation

fdia_graph.se.JacobianFeatures transforms the measurement change through the estimator's Jacobian (implied state move H⁺Δz, explained and unexplained parts and their ratio, sensitivity, leverage, weak-direction energy) and aggregates it to buses. The change is taken against the previous frame's estimate, and the estimator is calibrated from measurements only (calibrate="measured"), so every set below reads observed data only.

set	features=	input
A	"meas"	measurements only
B	"full14"	the papers' 14-dim vector (the rows above)
C	"full14+jac"	B + the 8 Jacobian features
D	"jac"	the Jacobian features alone
E	"full14+prev"	B + the previous frame's swing
F	"full14+prev+jac"	E + the 8 Jacobian features

Model (1D CNN, zero-shot)	F1 14	DR 14	FR 14	F1 118	DR 118	FR 118	F1 300	DR 300	FR 300
A: measurements only	0.621	0.610	0.0000	0.000	0.000	0.0000	0.000	0.000	0.0000
B: measurements + temporal (the papers' 14)	0.804	0.730	0.0010	0.812	0.741	0.0002	0.811	0.759	0.0000
C: B + Jacobian features	0.846	0.773	0.0016	0.882	0.813	0.0001	0.909	0.870	0.0000
D: Jacobian features only	0.773	0.733	0.0043	0.770	0.762	0.0026	0.744	0.728	0.0008
E: B + the previous frame's swing	0.846	0.753	0.0001	0.913	0.852	0.0000	0.883	0.822	0.0000
F: E + Jacobian features	0.860	0.780	0.0002	0.920	0.865	0.0000	0.923	0.886	0.0000

finding	evidence
the previous swing and the Jacobian block fix different things	E lifts the family the echo hurts most, Aq, from 0.84 to 0.95 on 118 and 0.84 to 0.89 on 300. C lifts the unseen in-place families, Ar from 0.68 to 0.82 on 300. F keeps both and is the best set on every system
measurements alone do not localize at scale	A reads 0.62 on 14 and collapses to 0.00 on 118 and 0.00 on 300 at the validation-best threshold; the temporal channels are what make the vector work
the Jacobian block alone is not enough	D trails B on every system, and on 300 its Aq F1 is 0.59 against 0.84
in the common protocol the Jacobian block costs precision	C and F have the highest detection rate on 118 and 300 (0.79 and 0.80 against the CNN's 0.74 on 118) and lose pooled F1 (0.36 and 0.37 against 0.50): they flag the buses around a local false state as well as the labelled ones

Three readings

reading	evidence	open case
the temporal spike is an onset signal	the swing threshold alone reads 0.16, 0.43 and 0.39 macro-F1 in the common protocol on 14, 118 and 300, and close to nothing on At and Am everywhere (the figures): it catches the one-frame families and the first frame of an episode, then the feature fades because each frame is compared with the frame before it	the slow ramp At and the held redistribution Am inside an episode
the classical arm misses every stealthy family	ResidualLocalizer finds in-place corruption and smears it over neighbours; on Aq, At, Al and Am its node-F1 is near zero (IEEE-14 Aq: 0.003), there is no residual	it opens with a trusted set of meters, ../trust/README.md
learning plus physics holds with size	zero-shot CNN with the previous swing and the Jacobian block reads 0.860, 0.920 and 0.923 from 14 to 300 buses (the ablation table)	the common protocol, with At and Am in distribution, falls to 0.37 and 0.39 on 118 and 300: the per-frame localization of a sustained local false state is the frontier

The same papers' protocol trained federated across K utilities, with the Jacobian block, is in ../federated/README.md.

Regenerate

FG_SYSTEM=ieee14 python docs/localization/run_localization.py    # fits, writes runs of localization.* to results/
FG_SYSTEM=ieee118 python docs/localization/run_localization.py
FG_SYSTEM=ieee300 python docs/localization/run_localization.py
python docs/localization/make_report.py                          # figures + CSV sidecars from the store
python tools/results_docs.py --write                             # the README's results blocks

IEEE-300 takes the longest, mostly the residual arm's solves.
